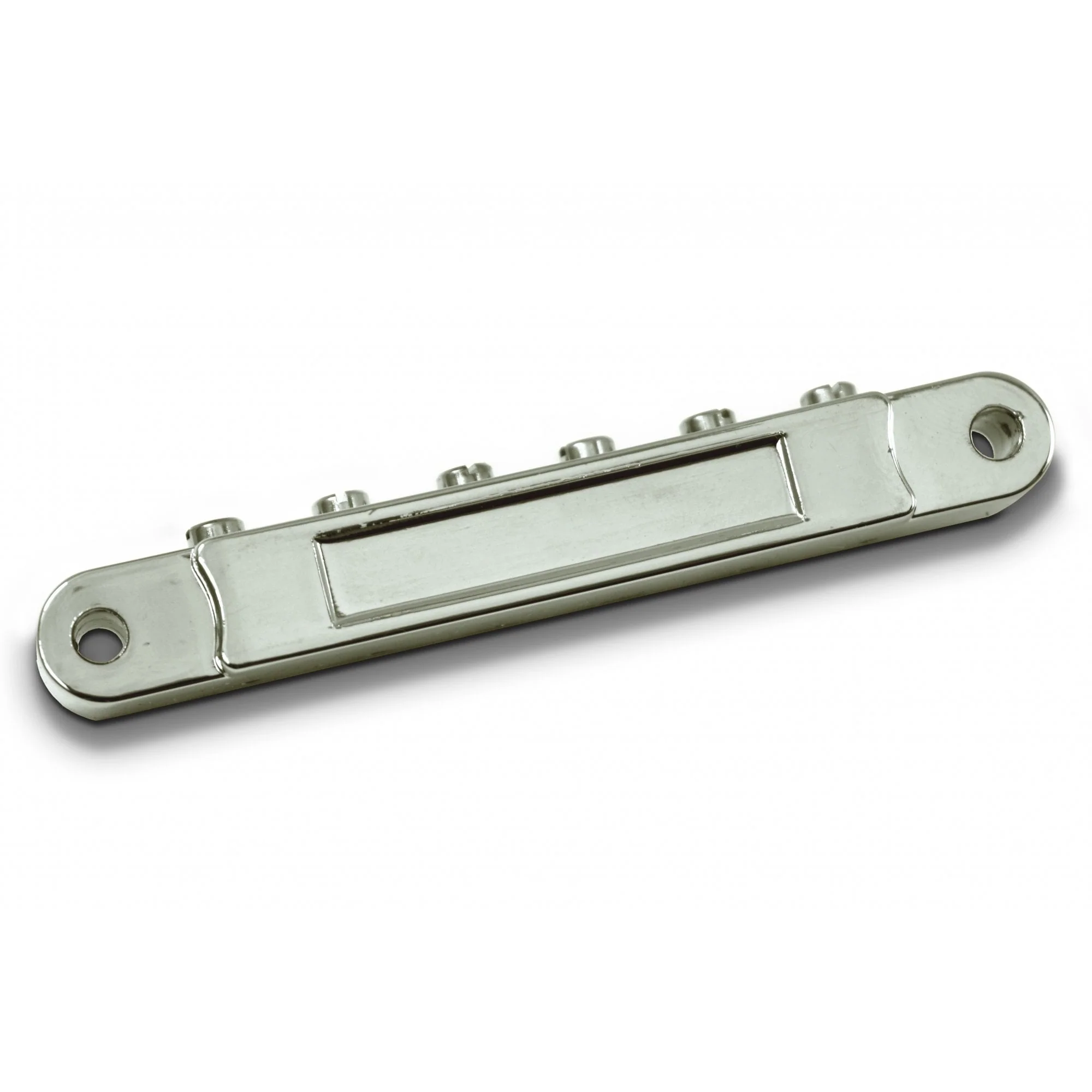

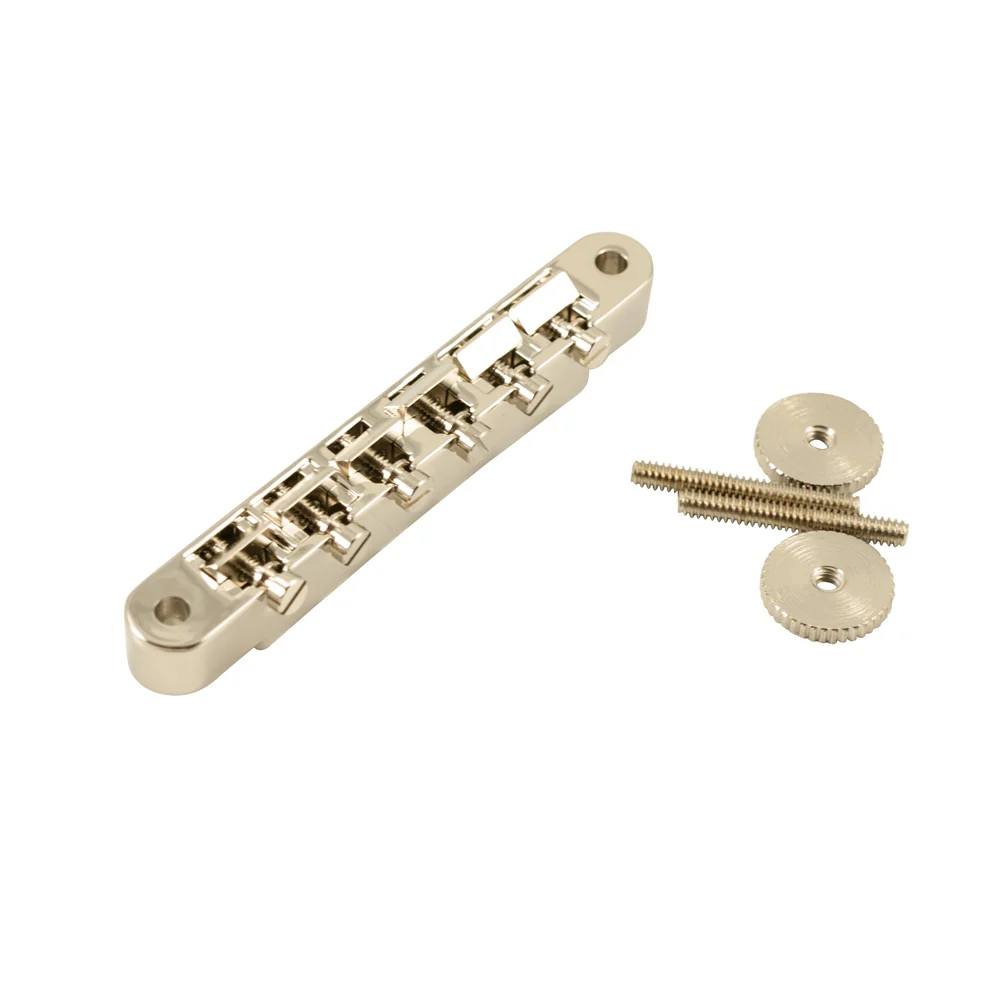

ABR-1 Bridge No Wire W/ Brass Saddles W/Hardware (US MADE)
True to vintage specifications, this made-in-USA Armstrong Music ABR-1 tune-o-matic bridge with brass saddles comes without the retaining wire, as found on the late 50's originals up to around 1962 (after this time they started to produce them with the retaining wire). USA thread posts and thumbwheels included. Available in nickel, chrome or gold. Brass saddles with a zinc bridge base.
Bridge stud diameter = 4 mm, smooth top
Bridge centre to centre mounting hole spacing = 2.93 in. (74.42mm)
Saddle spacing = 10.4mm
Saddle radius - 12" (304.80mm)
E to E string spacing = 52mm
Thread Type = 6-32
Post Length = 1 inch (25.4mm)
