Contemporary Two Pivot Mount Block Saddles Narrow-Spaced 52.5mm 510TS Tremolo System

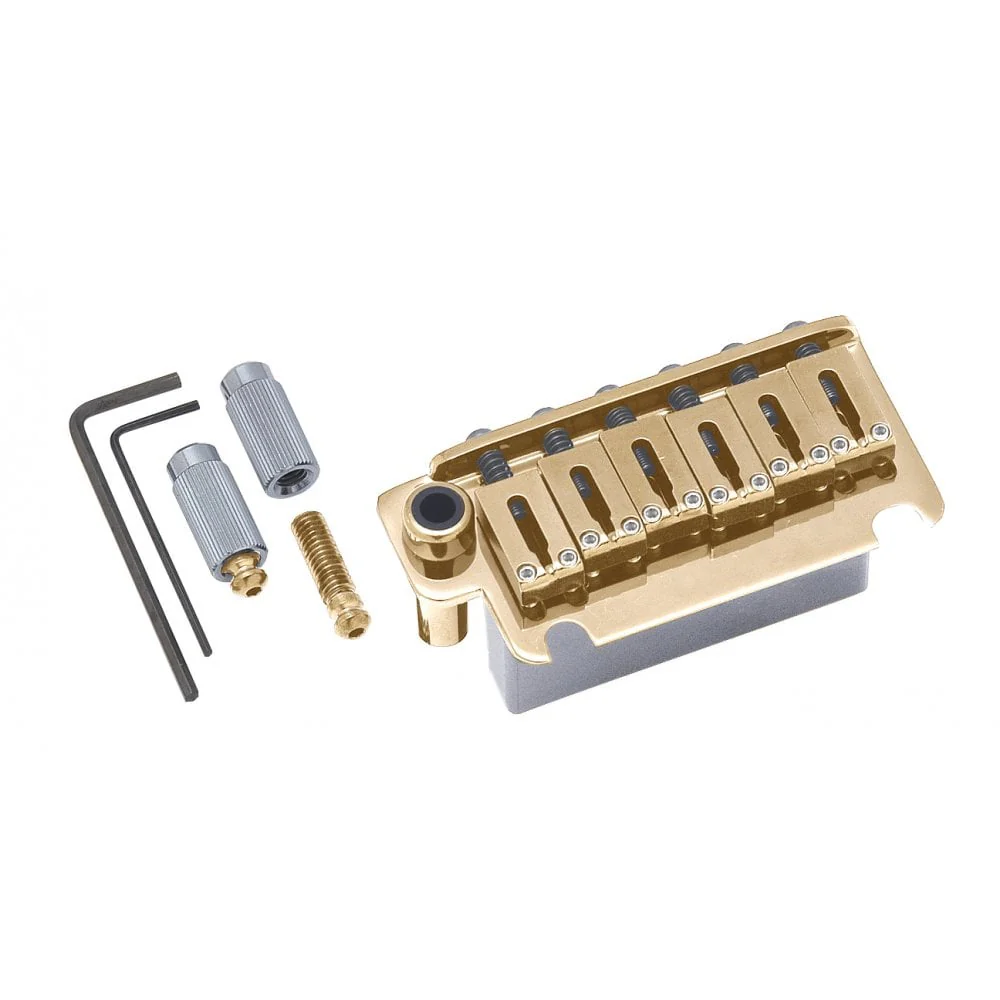

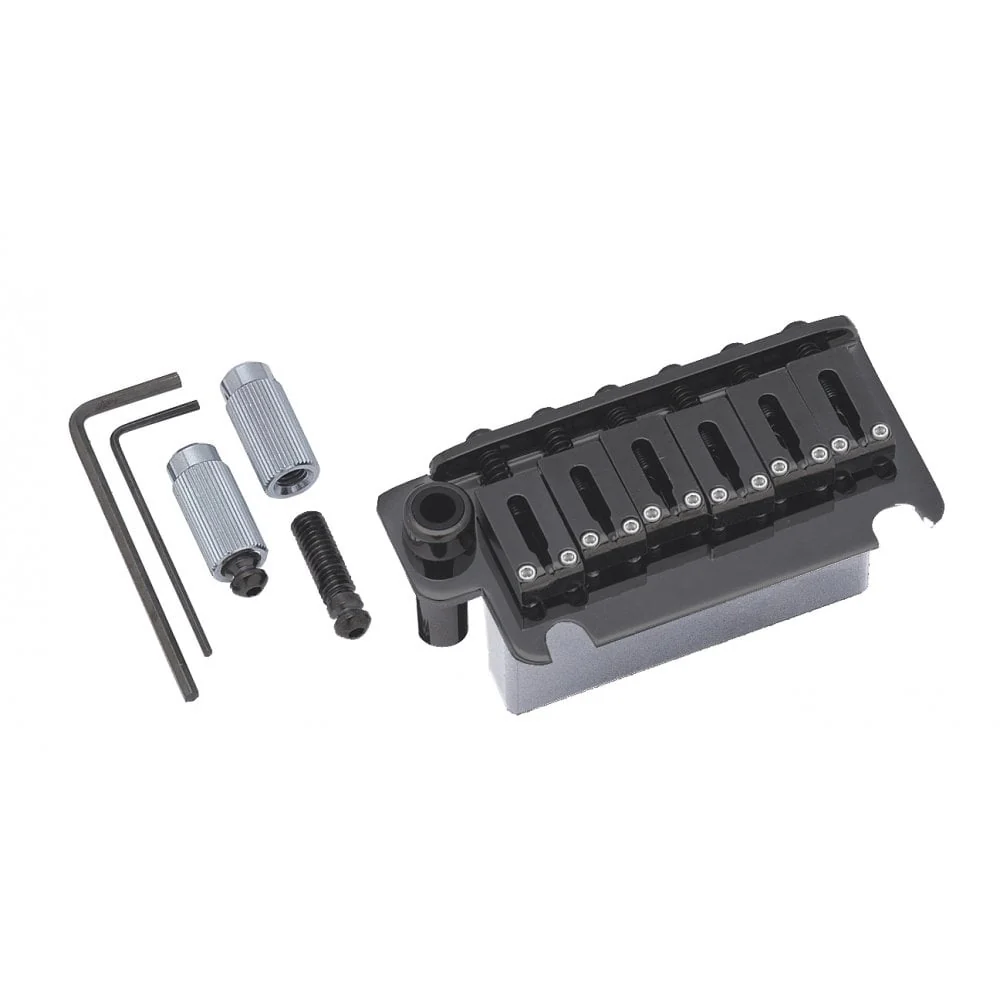

Gotoh contemporary trem bridge with a narrow string spacing - 52.5mm between the centres of the low E and high E saddles. Block steel saddles with a Gotoh's 510TS steel sustain block. Two post pivot fulcrum mounting. Allen keys, springs, spring claw with screws, arm, mounting posts and inserts are all included. Resilient chromium molybdenum steel base plate and high-grade heat treatment with Gotoh's precision machining all equal up to one of the highest quality tremolo units on the market today.
The included Gotoh posts have a different thread to the body inserts that are fitted as standard onto a USA Fender Strat. Therefore the existing inserts will need to be removed from the body to be able to fit the replacement Gotoh posts and inserts.
Important measurements
Centre to centre of post mounting - 56mm
String pitch - 10.5mm.
Diameter of body fit bushes - 10mm.

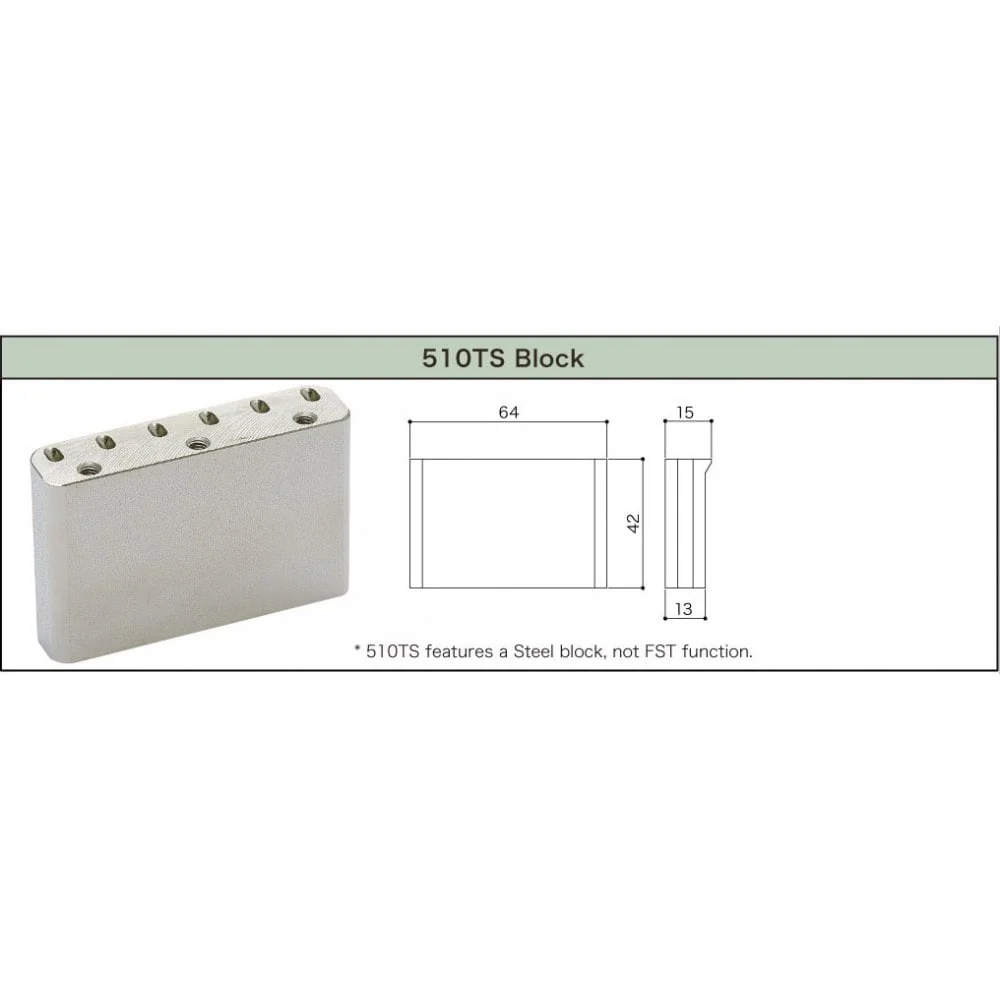

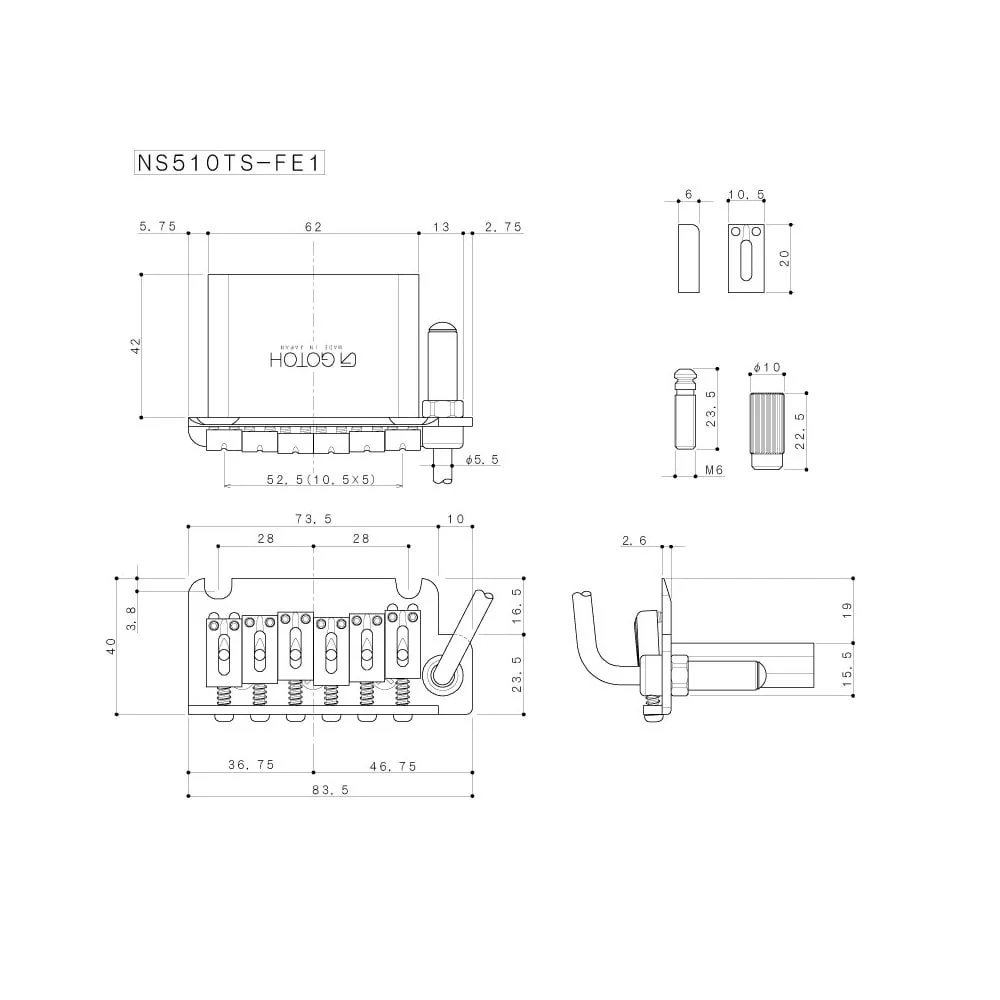

More measurements for this unit are shown with the additional product images
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Contemporary Two Pivot Mount Block Saddles Narrow-Spaced 52.5mm 510TS Tremolo System
Contemporary Two Pivot Mount Block Saddles Narrow-Spaced 52.5mm 510TS Tremolo System
Gotoh contemporary trem bridge with a narrow string spacing - 52.5mm between the centres of the low E and high E saddles. Block steel saddles with a Gotoh's 510TS steel sustain block. Two post pivot fulcrum mounting. Allen keys, springs, spring claw with screws, arm, mounting posts and inserts are all included. Resilient chromium molybdenum steel base plate and high-grade heat treatment with Gotoh's precision machining all equal up to one of the highest quality tremolo units on the market today.
The included Gotoh posts have a different thread to the body inserts that are fitted as standard onto a USA Fender Strat. Therefore the existing inserts will need to be removed from the body to be able to fit the replacement Gotoh posts and inserts.
Important measurements
Centre to centre of post mounting - 56mm
String pitch - 10.5mm.
Diameter of body fit bushes - 10mm.
More measurements for this unit are shown with the additional product images
Original: $295.19
-70%$295.19
$88.56Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Gotoh contemporary trem bridge with a narrow string spacing - 52.5mm between the centres of the low E and high E saddles. Block steel saddles with a Gotoh's 510TS steel sustain block. Two post pivot fulcrum mounting. Allen keys, springs, spring claw with screws, arm, mounting posts and inserts are all included. Resilient chromium molybdenum steel base plate and high-grade heat treatment with Gotoh's precision machining all equal up to one of the highest quality tremolo units on the market today.
The included Gotoh posts have a different thread to the body inserts that are fitted as standard onto a USA Fender Strat. Therefore the existing inserts will need to be removed from the body to be able to fit the replacement Gotoh posts and inserts.
Important measurements
Centre to centre of post mounting - 56mm
String pitch - 10.5mm.
Diameter of body fit bushes - 10mm.
More measurements for this unit are shown with the additional product images
