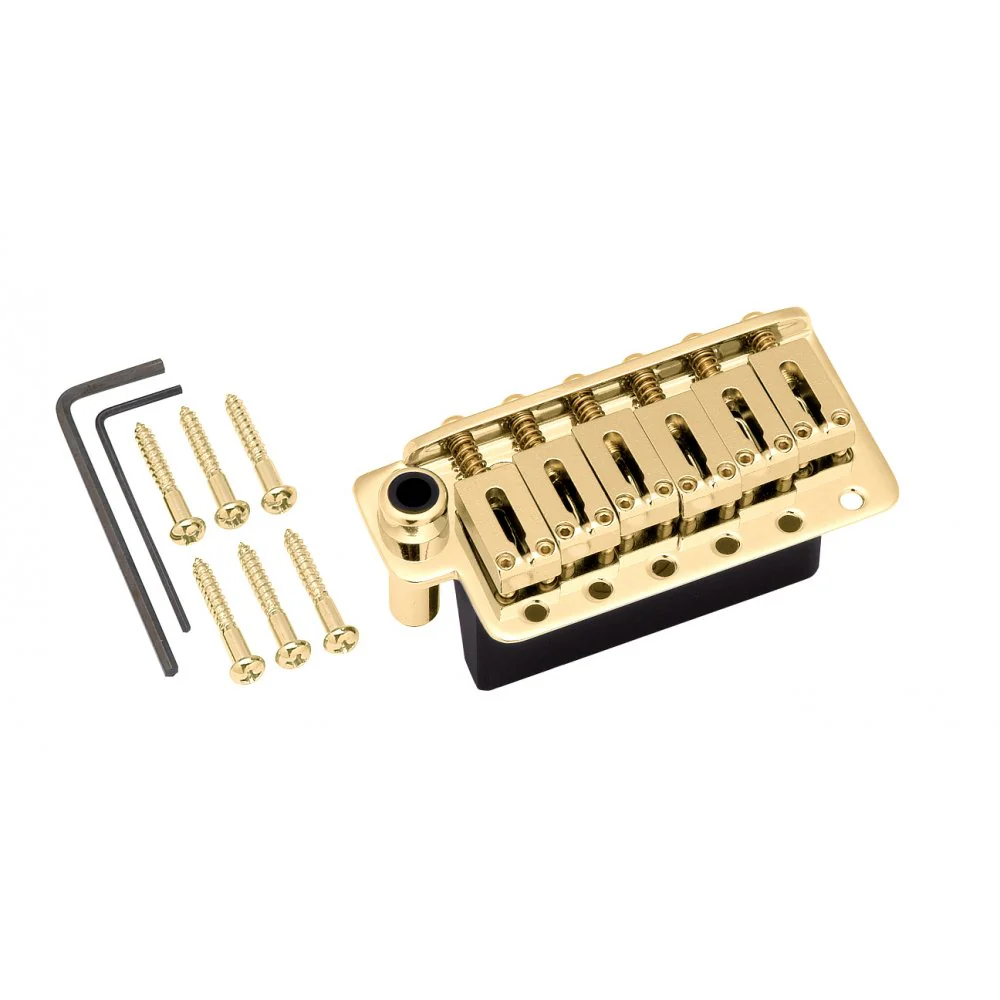

Gotoh contemporary tremolo bridge unit with block steel saddles with a solid steel block. 6 screw mounting. Allen keys, springs, spring claw with screws, arm, mounting screws and inserts are all included. Resilient chromium molybdenum steel base plate and high-grade heat treatment with Gotoh's precision machining all equal up to one of the highest quality tremolo units on the market today.

Please be aware that the cosmo finish version of this item is supplied without Gotoh retail packaging. These units were originally ordered in bulk for a guitar manufacturer who requested unbranded stock, but the order was subsequently cancelled. Despite the plain packaging, these are brand new, official Gotoh products.

Please note - this Gotoh tremolo bridge will retrofit a Fender American Standard Strat with a bit of modification. A small amount of finish and wood needs to be filed off the treble side of the tremolo body route to make way for the round vibrato arm mount that sits under the bridge plate. A small rasp file can be used for this, it takes about 5 minutes and does not show once the bridge has been installed.

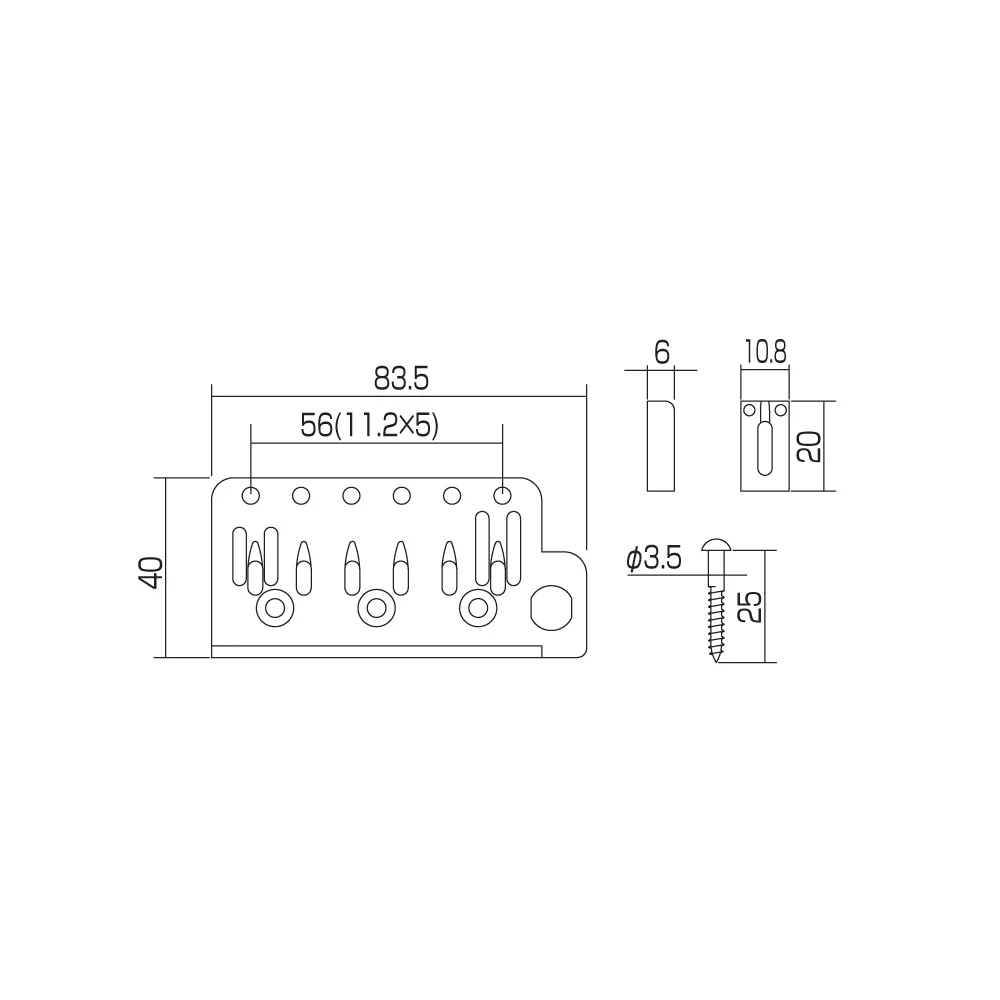

Important measurements

Centre to centre of outer mounting holes - 56mm

String pitch - 10.8mm. (E to E string spacing - 54mm)
