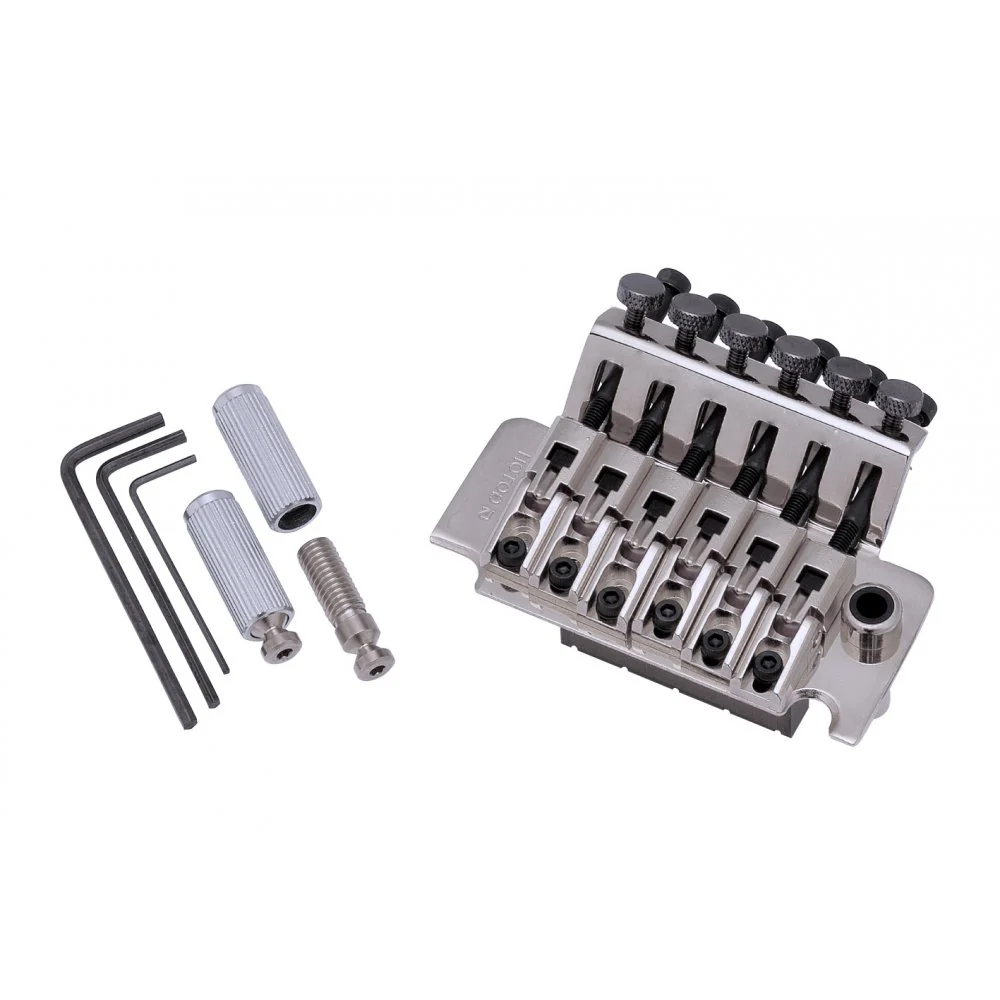

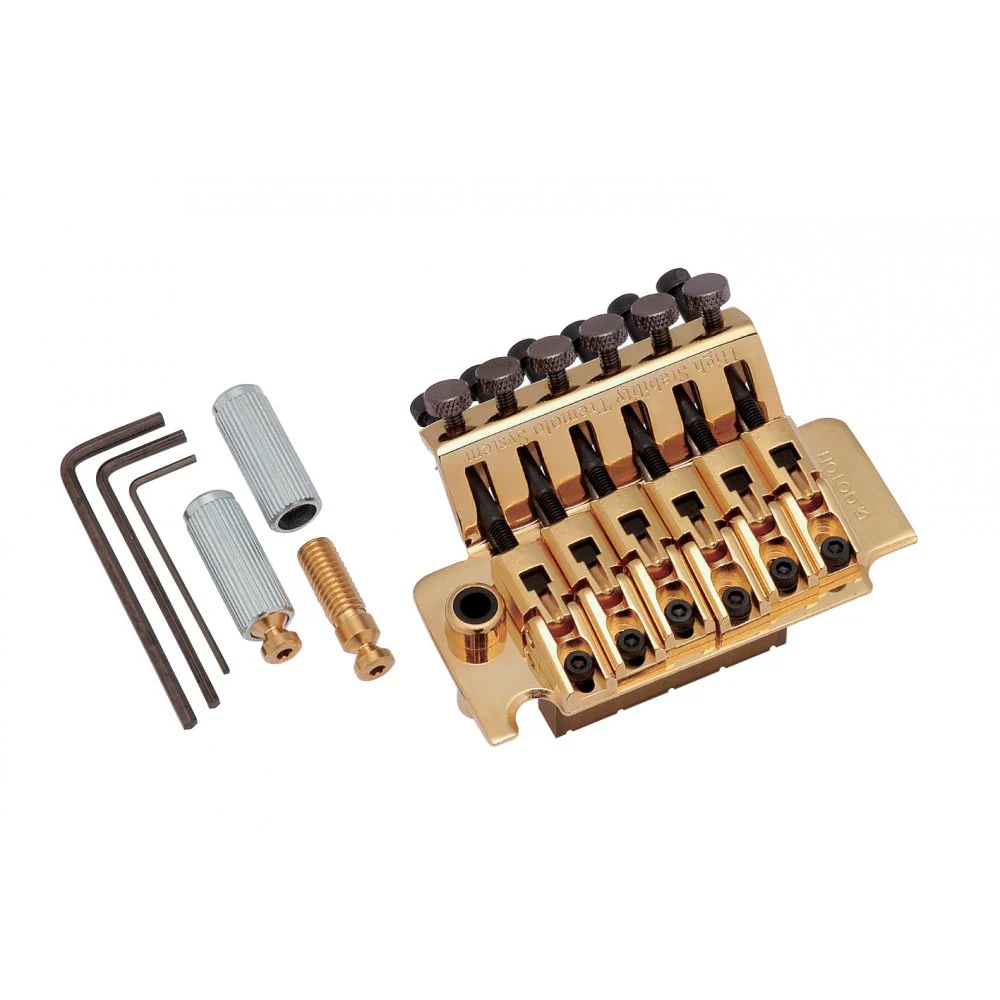

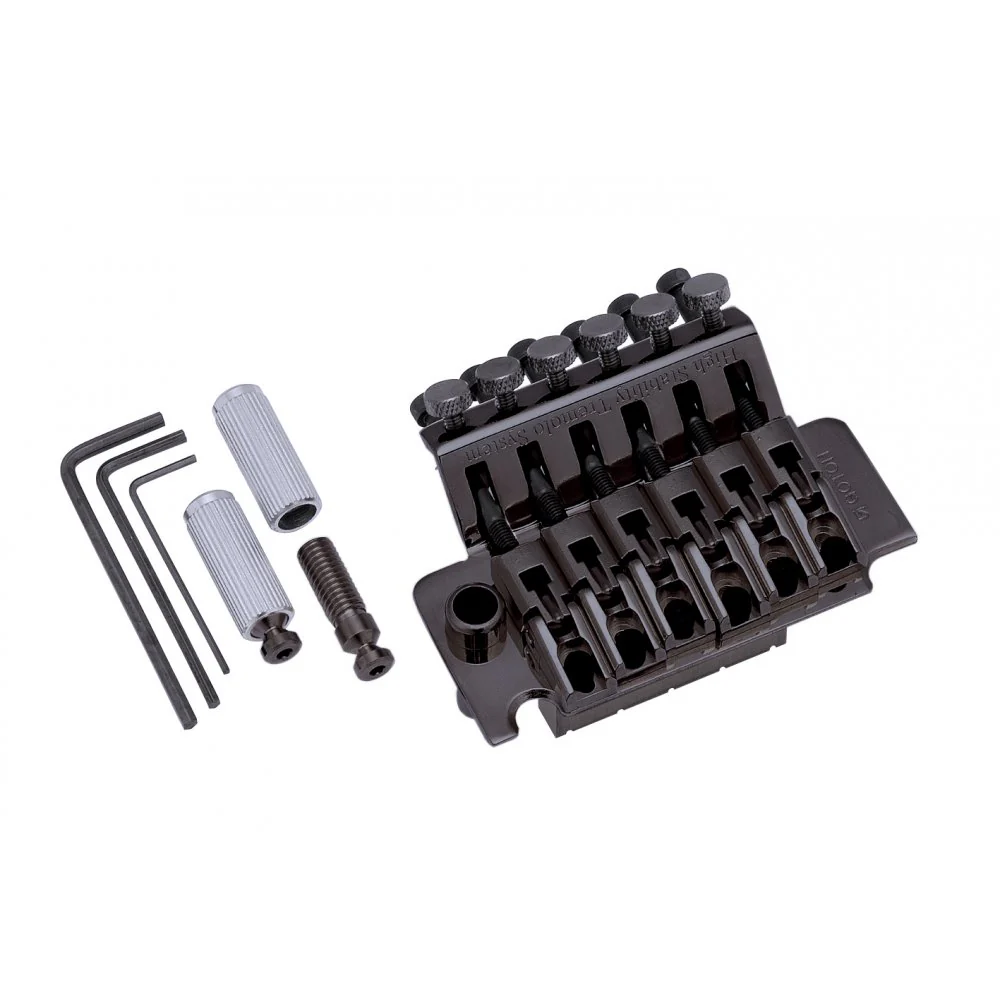

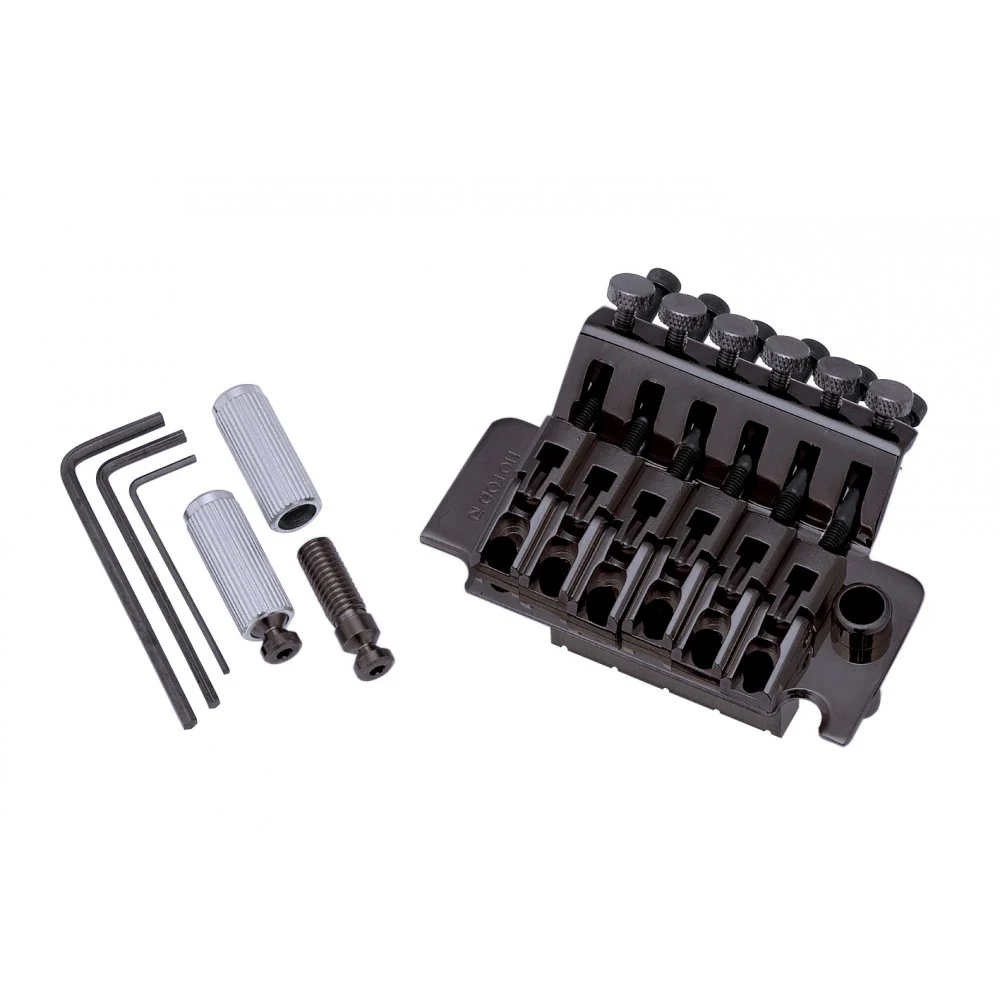

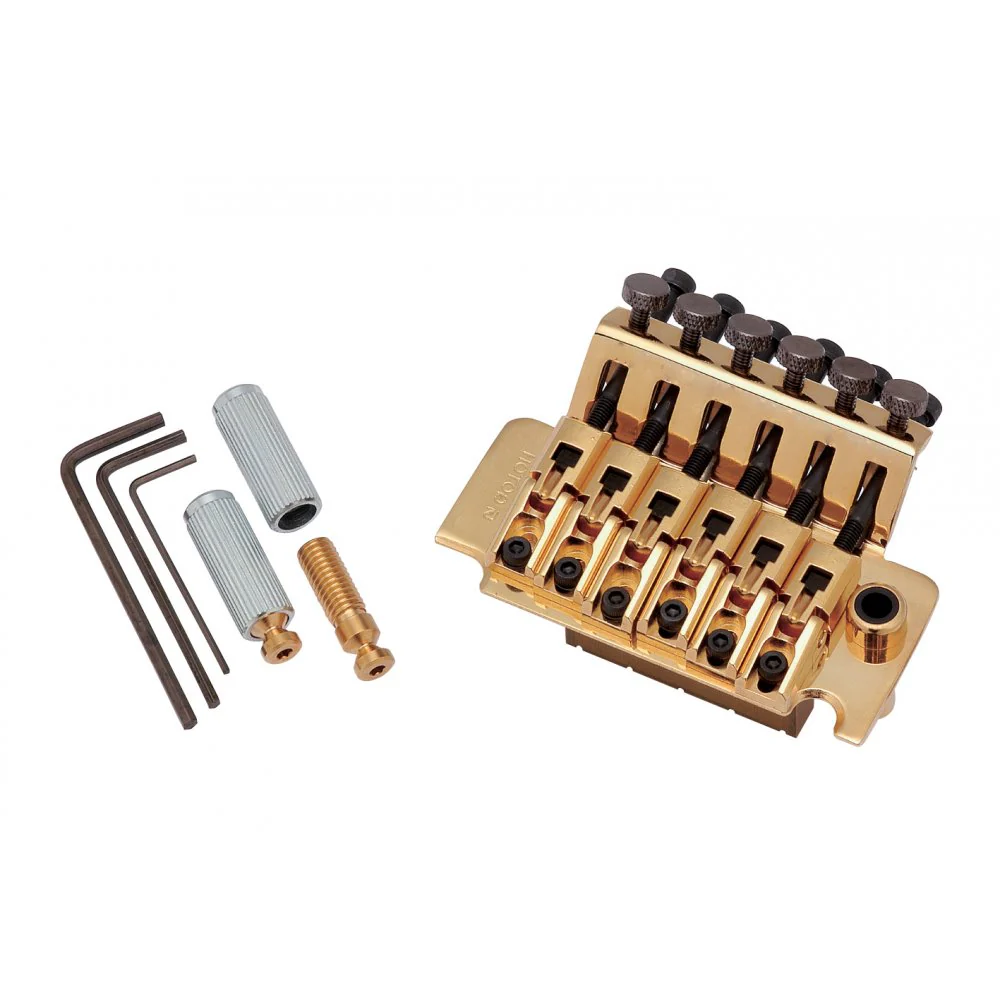

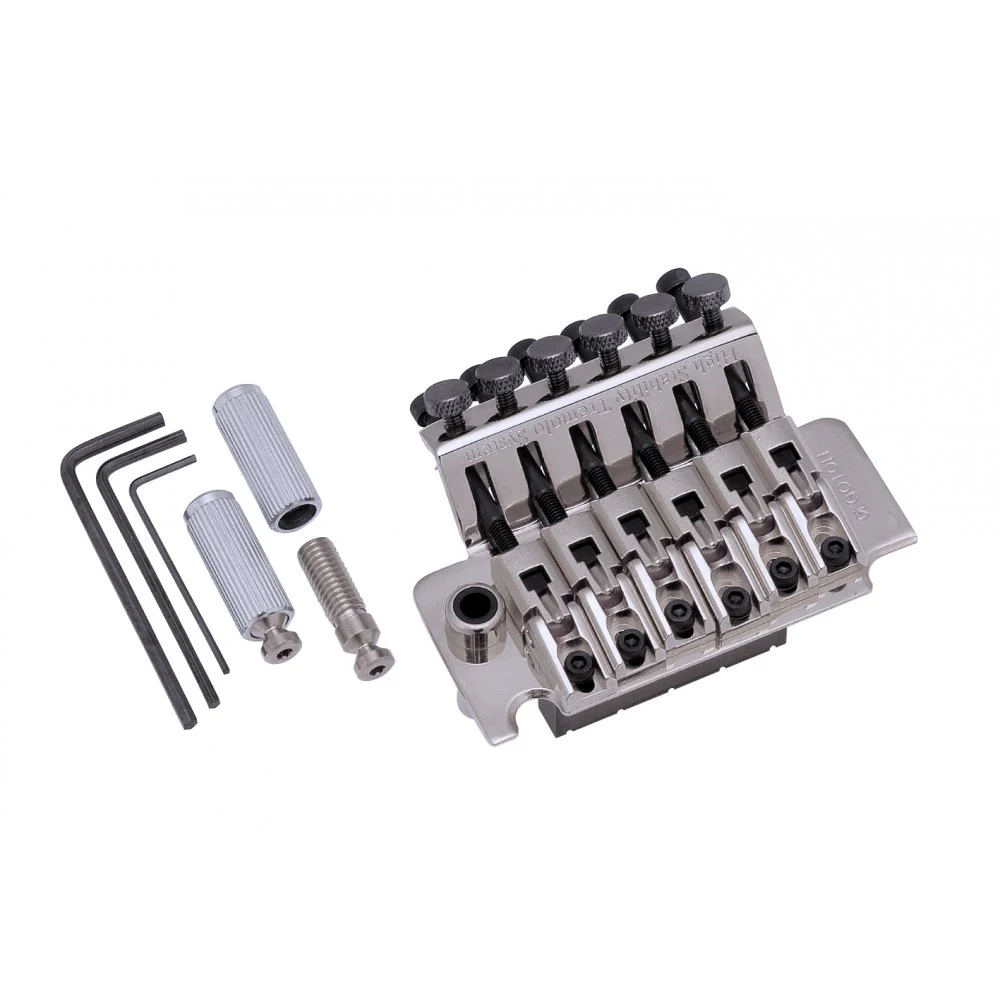

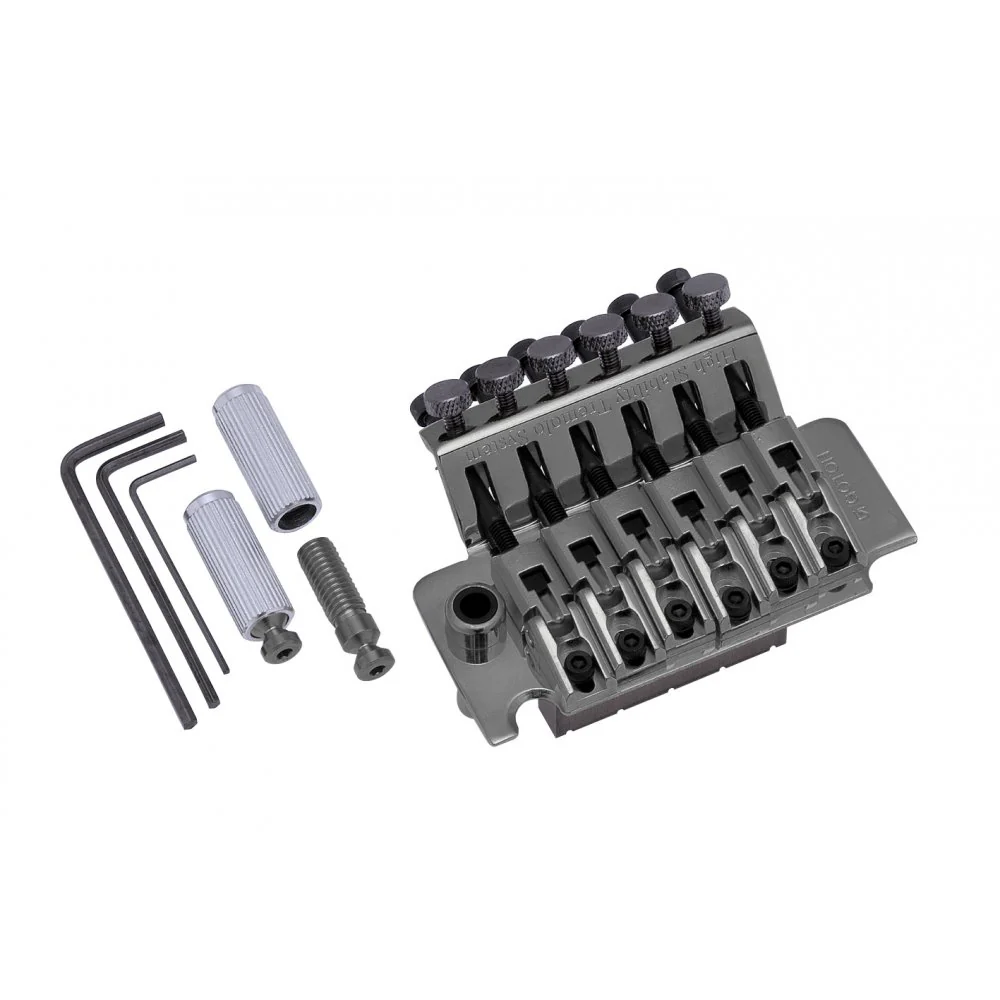

Gotoh Floyd Rose bridge, model GE1996T. Includes the arm, 3 springs, spring claw with screws, allen keys, mounting posts and inserts. A superb quality unit and probably the best Floyd on the market today. Cannot be used on a conventional Strat body without routing -‚ this same unit is also available with a shorter 33mm sustain block that is ideal for thinner guitar bodies.

The tremolo arm supplied is hollowed out at the base and threaded on the inside. This then screws into the trem unit like a normal vintage bridge but there is also a small grub screw on the bridge unit to tighten the arm and lock it in position. This is a well thought out design by Gotoh and means that the thread will not wear out over time.

Looking for just replacement studs and inserts for the Gotoh Floyd Rose GE1996? Please see here. ‚

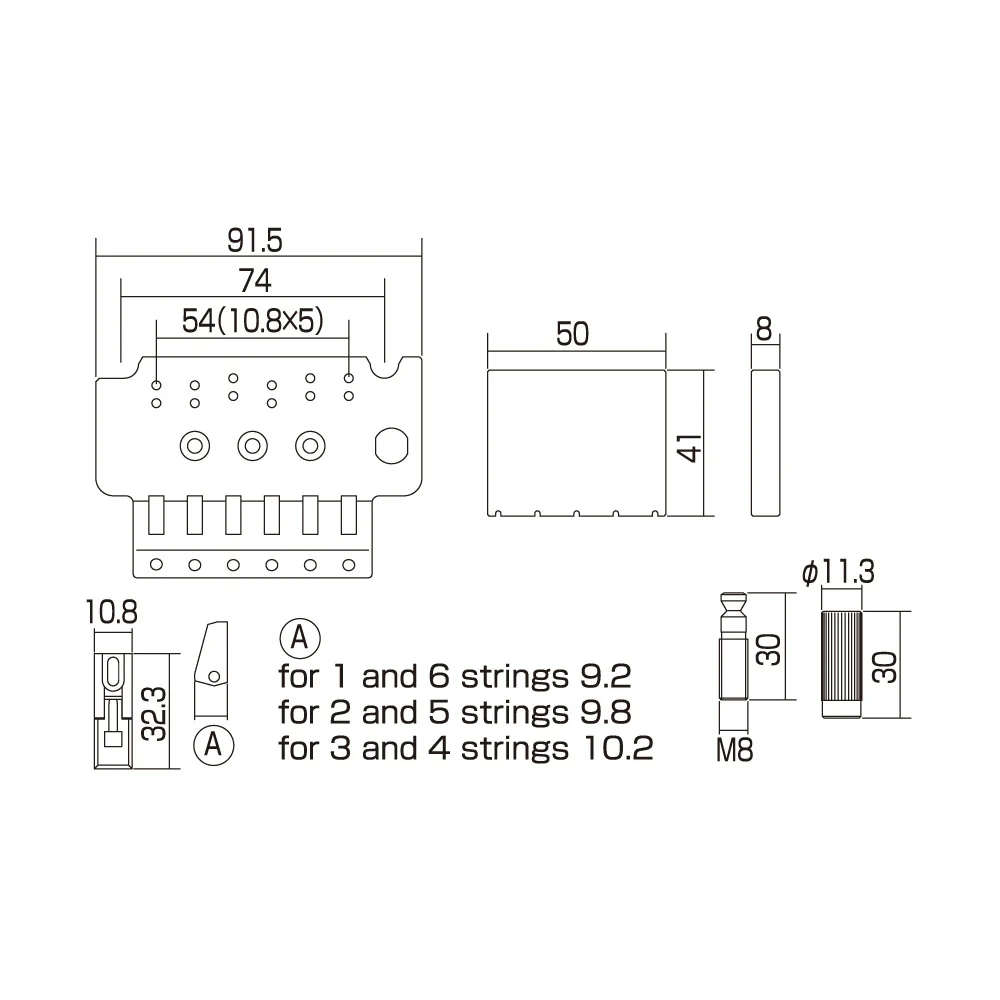

Important measurements -
Centre to centre of the two mounting posts - 74mm
String pitch - 10.8mm
